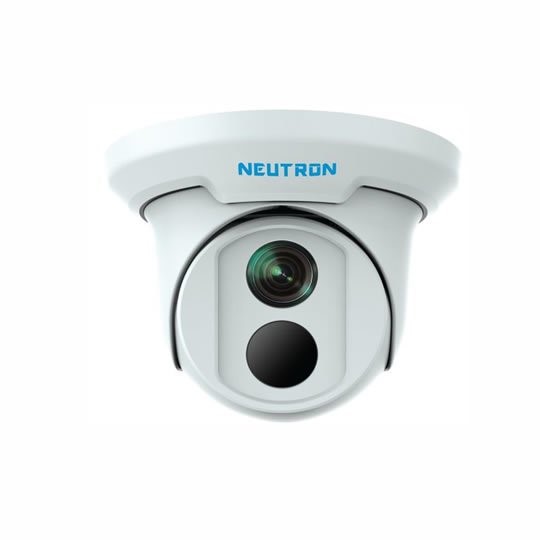

IPC3612LR3-PF28-E

Neutron

Ürün Açıklaması

IPC3612LR3-PF28-E IPC3612LR3-PF40-E
Camera
Sensor 1/2.7", 2megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0 4.0mm@2.0
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 46.7 18.7 9.3 4.7
4.0mm 66.7 26.7 13.3 6.7
Angle of view(H) 112.7° 86.5°
Angle of View (V) 60.1° 44.1°
Angle of View (O) 146.5° 106.4°
Shutter Auto/Manual, 1~1/100000 s
Adjustment angle Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
Min. Illumination Colour: 0.02 Lux (F2.0, AGC ON)
0 Lux with IR
IR Range Up to 30m (98 ft) IR range
Day/Night IR-cut filter with auto switch (ICR)
S/N >52dB
WDR Supported
Noise Reduction 2D/3D
Video
Max. Resolution 1920×1080
Video Compression Ultra 265,H.265,H.264,MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream:1080P (1920*1080): Max. 30 fps;
Sub Stream: 720P (1280*720): Max. 30 fps;
Third Stream: CIF (352*288): Max. 30 fps
HLC Supported
BLC Supported
OSD Up to 4 OSDs
Privacy Mask Up to 8 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
Network
Protocols IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Compatible Integration ONVIF(Profile S, Profile T),API
Interface
Network 10/100M Base-TX Ethernet
General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 4.5W
Dimensions (Ø x H) Φ118x 96 mm (Φ4.6” x 3.8”)
Weight 0.3kg (0.44lb)
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress Protection IP66
