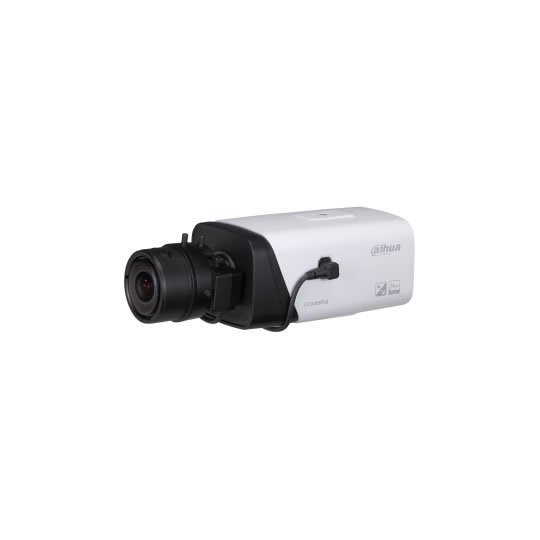

IPC-HF81230EP-E

Dahua

Ürün Açıklaması

Camera

Image Sensor

1/1.7” 12Megapixel progressive scan CMOS

Effective Pixels

4000(H)x3000(V)

RAM/ROM

1024MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.005Lux/F1.2(Color,1/3s,30IRE)

0.05Lux/F1.2(Color,1/30s,30IRE)

0.003Lux/F1.2(B/W,1/3s,30IRE)

0.03Lux/F1.2(B/W,1/30s,30IRE)

S/N Ratio

More than 50dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

N/A

Mount Type

C/CS

Focal Length

N/A

Max. Aperture

N/A

Angle of View

N/A

Optical Zoom

N/A

Focus Control

N/A

Close Focus Distance

N/A

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

N/A

Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection, People Counting, Heat Map

Video

Compression

H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

3 Streams

Resolution

12M(4000x3000)/ 4K(3840x2160)/ 6M(3072x2048)/ 5M(2560x1920)/

3M(2048x1536)/ 3M(2304x1296)/ 1080P(1920×1080)/ 1.3M(1280x960)/

720P(1280x720)/ D1(704×576/704x480) / VGA(640x480)/ CIF(352×288/342x240)

Frame Rate

Main Stream: 12M(1~20fps)/ 4K(1~25/30fps)

Sub Stream: D1 (1 ~ 25/30fps)

Third Stream: 1080P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24~ 16384Kbps

H.265: 14~ 9984Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR/ SSA

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

Support

Smart IR

N/A

Defog

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

1 port(BNC,1Vp-p,75Ω)

Audio Interface

1/1 channel In/Out, 1 Built-in Mic

RS485

1 port

Alarm

2 channel In: 5mA 5VDC

1 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

DC12V, AC24V, PoE(802.3af)(Class 0)

Power Consumption

<8W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Storage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

135.4mm×74.4mm×65.5mm (5.33×2.93×2.58)

Net Weight

0.66Kg (1.46lb)

Gross Weight

0.77Kg (1.7lb)
