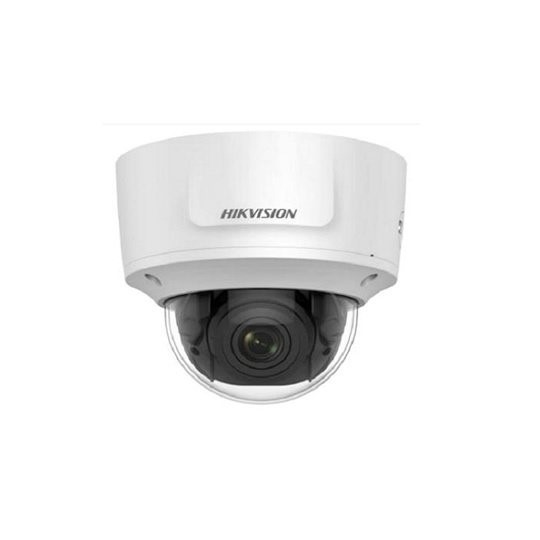

Haikon-Hikvision 4 MP WDR Vari-focal Network Dome Kamera

Ürün Açıklaması

4 MP WDR Vari-focal Network Dome Kamera



  •  • 1/2.5" Progressive Scan CMOS



     • 2688 × 1520 @30 fps



     • 2.8 to 12 mm motorized vari focal lens



     • Powered by Darkfighter



     • H.265, H.265+, H.264+, H.264



     • 120dB WDR



     • 4 behavior analyses



     • BLC/3D DNR/ROI/BLC



     • IP67, IK10



     • IR range: up to 30m



     • Built-in micro SD/SDHC/SDXC card slot ,up to 128 GB
Camera
Image Sensor:   1/2.5" Progressive Scan CMOS
Signal System:   PAL/NTSC
Min. Illumination:   Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR
Shutter time:   1/3 s to 1/100,000 s
Slow shutter:   Support
Lens:   Horizontal field of view: 114° to 32°
Vertical field of view: 59° to 18°
Diagonal field of view: 141° to 36.5°
Lens Mount:   φ14
Adjustment Range:   Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night:   IR Cut Filter
Wide Dynamic Range:   120 dB
Digital noise reduction:   3D DNR
Focus:   Auto
Compression Standard
Video Compression:   H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:   Main Profile/High Profile
Video bit rate:   32Kbps~16Mbps
Audio Compression:   G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:   64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams:   Yes
Max. Image Resolution:   2688 × 1520
Frame Rate:   50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
Sub Stream:   50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:   50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement:   BLC/3D DNR/BLC
Image Settings:   Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI:   Support 1 fixed region for main stream and sub stream separately
Day/Night Switch:   Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage:   microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:   Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:   TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:   One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
mask, Watermark, IP address filtering
System Compatibility:   ONVIF (Profile S, Profile G), ISAPI
Interface
Audio:   1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Communication Interface:   1 RJ45 10M / 100M Ethernet interface
Alarm:   1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output:   1Vp-p Composite Output (75 Ω, BNC)
On-board storage:   Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:   Yes
Audio
Environment Noise Filtering:   Support
Audio Sampling Rate:   8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis:   Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection:   Cross a pre-defined virtual line
Intrusion Detection:   Enter and loiter in a pre-defined virtual region
Unattended Baggage:   Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:   Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections:   Scene change detection
Recognition:   Face Detection
General
Operating Conditions:   -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:   12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:   12 VDC, 1 A, max. 11 W
PoE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.5 W
Impact Protection:   IK10
Weather Proof:   IP67
IR Range:   Up to 30m
Dimensions:   Φ153.4 × 133.1 mm (Φ6" × 5.2")
Weight:   Camera: 1287 g (2.8 lb.)
