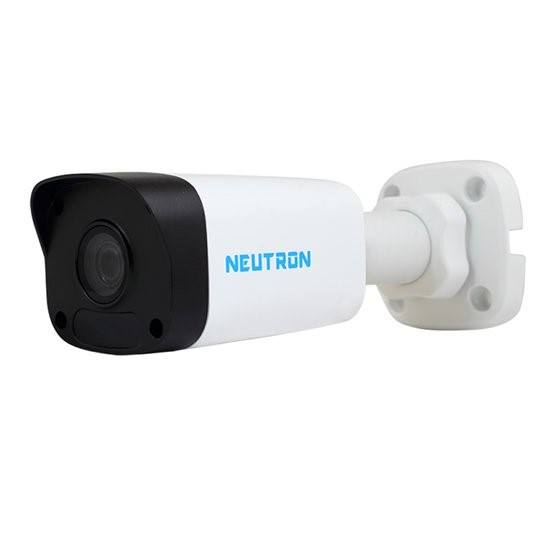

IPC2124LR3-PF40M-D

Neutron

Ürün Açıklaması



IPC2124LR3-PF40M-D IPC2124LR3-PF60M-D
Camera
Sensor 1/3", 4.0 megapixel, progressive scan, CMOS
Lens 4.0mm@F2.0 6.0mm@F2.0
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
4.0mm 60 24 12 6
6.0mm 90 36 18 9
Angle of View (H) 78.9° 49.9°
Angle of View (V) 39.6° 27.0°
Angle of View (O) 97.0° 57.7°
Adjustment angle Pan:   0°~360° Tilt:   0°~90° Rotate: 0°~360°
Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination Colour: 0.03 Lux (F2.0, AGC ON)
0 Lux with IR on
Digital noise reduction 2D/3D DNR
Day/Night IR-cut filter with auto switch (ICR)
S/N >52dB
IR Range Up to 30m (98 ft) IR range
WDR DWDR
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream:4MP (2592*1520): Max. 20 fps;
Sub Stream:720P (1280*720): Max. 20 fps;
Third Stream:D1 (720×576): Max. 20 fps
HLC Supported
BLC Supported
OSD Up to 4 OSDs
Privacy Mask Up to 8 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
Network
Protocols IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Compatible Integration ONVIF(Profile S, Profile T), API
Interface
Network 10/100M Base-TX Ethernet
General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 4W
Dimensions (L × W × H) 167.3 × 62.9 ×62.7 mm (6.6” × 2.5” × 2.5”)
Weight 0.37kg (0.81lb)
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress Protection IP67
