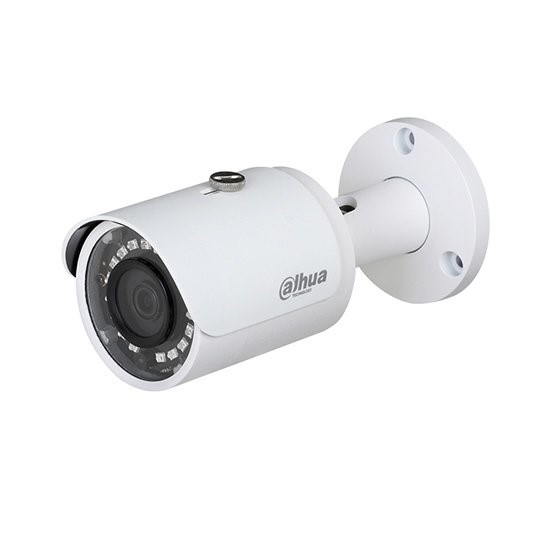

IPC-HFW1431SP-0360B

Dahua

Ürün Açıklaması

Camera

Image Sensor

1/3” 4Megapixel progresive CMOS

Effective Pixels

2688(H)x1520(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.08Lux/F2.0( Color,1/3s,30IRE)

0.3Lux/F2.0( Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

18

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

3.6 mm

Max. Aperture

F2.0/F2.0

Angle of View

H:104°/87°, V:57°/48°

Focus Control

Fixed

Close Focus Distance

N/A

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63m(207ft)

25m(82ft)

13m(43ft)

6m(20ft)

3.6 mm

80m(262ft)

32m(105ft)

16m(52ft)

8m(26ft)

PTZ

Pan/Tilt Range

Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly

IVS

Tripwire, Intrusion

Video

Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

4M(2688x1520)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 4M(1 ~ 20fps)/3M (1 ~ 25/30fps)

Sub Stream: D1(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265: 12K ~ 8448Kbps

H.264: 32K ~ 10240Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;

FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

Edge Storage

NAS

Local PC for instant recording

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V, PoE(IEEE 802.3af)(Class 0)

Power Consumption

< 5.5W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Stroage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal+Plastic

Dimensions

Φ70mm×164.7mm(2.76''x6.49'')

Net Weight

0.38Kg(0.84lb)

Gross Weight

0.44Kg(0.97lb)
