DS-2CD2665G0-IZS

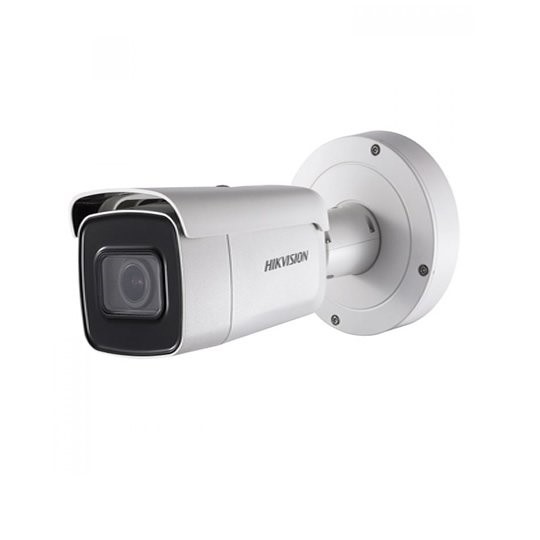

Haikon-Hikvision 6 MP IR Varifocal Bullet Network Camera

Ürün Açıklaması

6 MP IR Varifocal Bullet Network Camera
  •

     • 1/2.4" Progressive Scan CMOS



     • 3072 × 2048@20fps



     • H.265, H.265+



     • 120dB WDR



     • BLC/3D DNR/ROI/HLC



     • IP67, IK10



     • IR range: Up to 50 m



     • Powered by Darkfighter



     •  4 behavior analyses and face detection



     • Smart encoding: Support low bit rate, low latency



     • Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)

Camera
Image Sensor:   1/2.4" Progressive Scan CMOS
Signal System:   PAL/NTSC
Min. Illumination:   Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
Shutter time:   1/3 s to 1/100,000 s
Slow shutter:   Support
Lens:   Horizontal field of view: 114° to 34°
Vertical field of view: 71° to 23°
Diagonal field of view: 154° to 41°
Lens Mount:   φ14
Adjustment Range:   Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night:   IR Cut Filter
Wide Dynamic Range:   120 dB
Digital noise reduction:   3D DNR
Focus:   Auto
Compression Standard
Video Compression:   H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:   32Kbps~16Mbps
Audio Compression:   G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:   64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams:   Yes
Max. Image Resolution:   3072 x 2048
Frame Rate:   50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream:   50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:   50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement:   BLC/3D DNR
Image Settings:   Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI:   Support 1 fixed region for main stream and sub stream separately
Day/Night Switch:   Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage:   microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:   Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols:   TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function:   One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
mask, Watermark, IP address filtering
System Compatibility:   ONVIF (Profile S, Profile G), ISAPI
Interface
Audio:   1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Communication Interface:   1 RJ45 10M / 100M Ethernet interface
Alarm:   1 input, 1 output (max. 12 VDC, 30 mA)
Video Output:   1Vp-p Composite Output(75Ω/CVBS) (For adjustment only)
On-board storage:   Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:   Yes
Audio
Environment Noise Filtering:   Support
Audio Sampling Rate:   8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis:   Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection:   Cross a pre-defined virtual line
Intrusion Detection:   Enter and loiter in a pre-defined virtual region
Unattended Baggage:   Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:   Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections:   Scene change detection
Recognition:   Face Detection
General
Operating Conditions:   -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:   12 VDC ± 25% PoE (802.3at, class 4)
Power Consumption:   12 VDC, 1.2A, max. 14.5W
PoE: (802.3at, 36V to 57V), 0.5A to 0.3A, max. 18W

Weather Proof:   IP67
IR Range:   Up to 50m
Dimensions:   Camera: Φ144 × 332.7 mm (Φ5.7"× 13.1")
Weight:   Camera: 1400 g (3.1 lb.)
With package: 2500 g (5.5 lb.)
