DS-2CD2163G0-IS

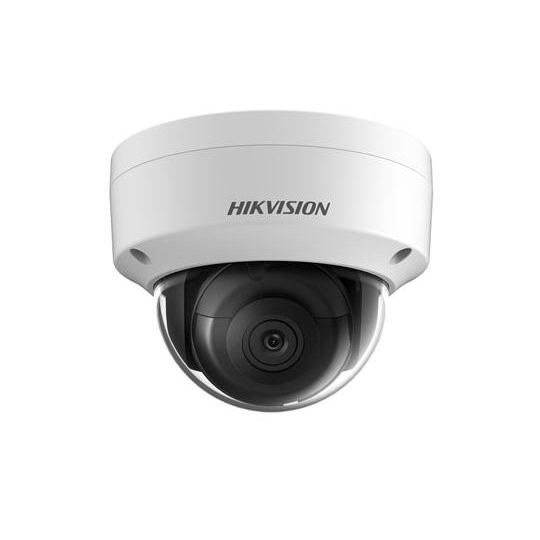

Haikon-Hikvision 6 MP IR Dome Network Camera

Ürün Açıklaması

6 MP IR Dome Network Camera



  •  • 1/2.9" Progressive Scan CMOS



     • 3072 ×2048@20fps



     • 2.8/4/6/8mm fixed lens



     • Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR



     • H.265+, H.265, H.264+, H.264



     • 2 Behavior analyses



     • 120dB WDR



     • BLC/3D DNR/ROI



     • IP67



     • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB

Camera
Image Sensor:   1/2.9" Progressive Scan CMOS
Signal System:   PAL/NTSC
Min. Illumination:   Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter time:   1/3 s to 1/100,000 s
Slow shutter:   Support
Lens:   2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°
4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°
6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75°
8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48°
Lens Mount:   M12
Adjustment Range:   Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night:   IR cut filter with auto switch
Wide Dynamic Range:   120 dB
Digital noise reduction:   3D DNR
Focus:   Fixed
Compression Standard
Video Compression:   H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:   256Kbps~16Mbps
Audio Compression:   -S: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:   64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams:   Yes
Max. Image Resolution:   3072 x 2048
Frame Rate:   50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream:   50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:   50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement:   BLC/3D DNR/ROI/HLC
Image Settings:   Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Target Cropping:   No
ROI:   1 fixed region for main stream and sub-stream
Day/Night Switch:   Day/Night/Auto/Schedule/Triggered by alarm input (-S)
Network
Network Storage:   microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:   Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:   TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:   One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility:   ONVIF (Profile S, Profile G),ISAPI
Interface
Audio:   with -S model:1 input (line in/mic.in), 1 output (line out), terminal block, mono sound
Communication Interface:   1 RJ45 10M / 100M Ethernet interface
Alarm:   with -S model:1 input, 1 output (max. 12 VDC, 30 mA), terminal block
On-board storage:   Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:   Yes
Audio
Environment Noise Filtering:   Support(-S)
Audio Sampling Rate:   8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis:   Line crossing detection, intrusion detection
Line Crossing Detection:   Cross a pre-defined virtual line
Intrusion Detection:   Enter and loiter in a pre-defined virtual region
Recognition:   Face Detection
General
Operating Conditions:   -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:   12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:   12 VDC, 0.6 A, max. 7.5W
PoE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 9W
Weather Proof:   IP67
IR Range:   Up to 30m
Dimensions:   Camera: Φ 111 mm × 82.4 mm (Φ 4.4" × 3.2")
Package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3")
Weight:   Camera: 500 g (1.1 lb.)
